HAMMEL NZS

HAMMEL NZS

SECONDARY SHREDDER

MAKE: HAMMEL

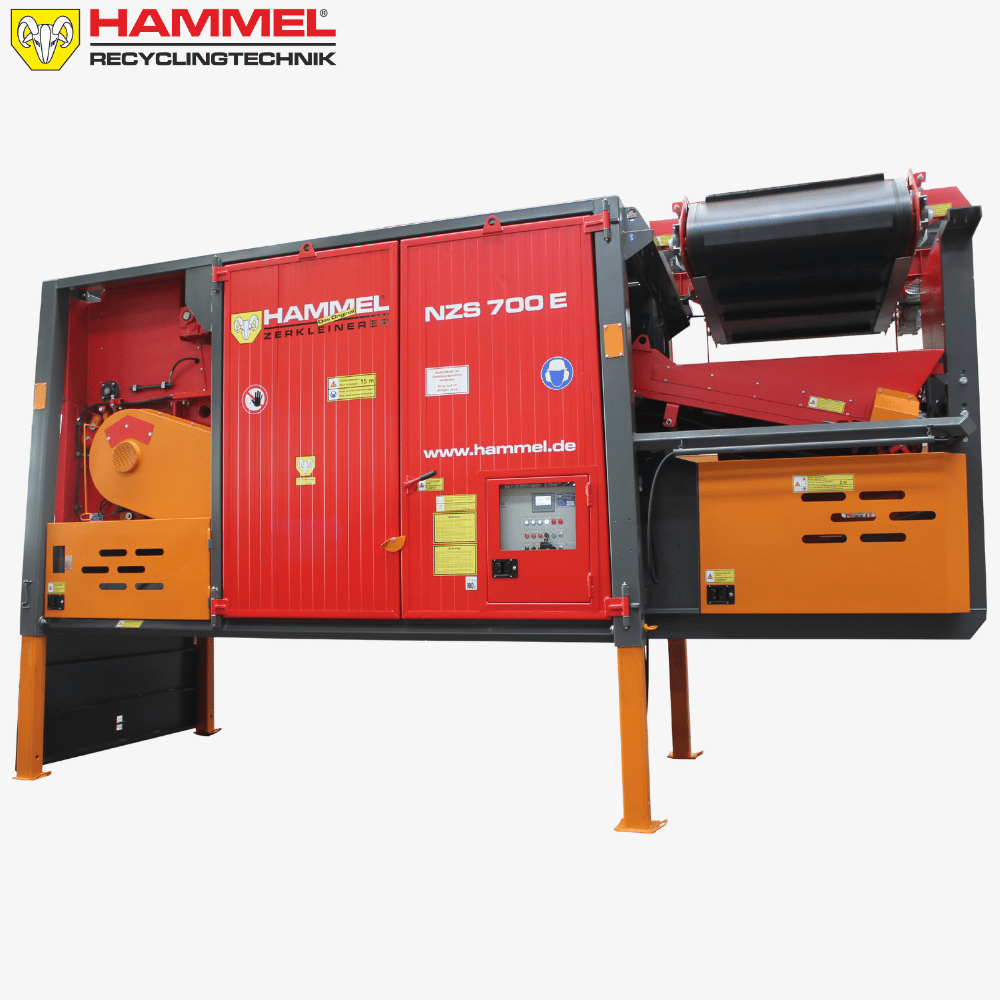

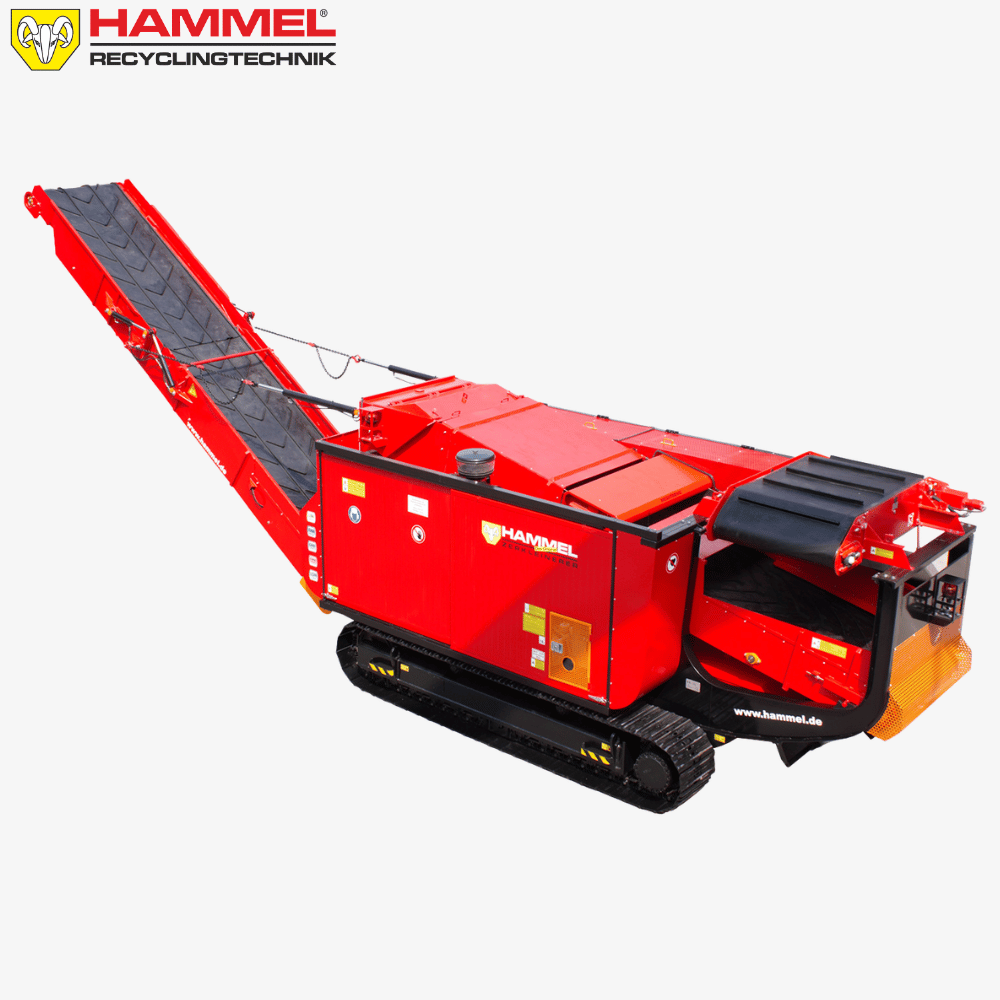

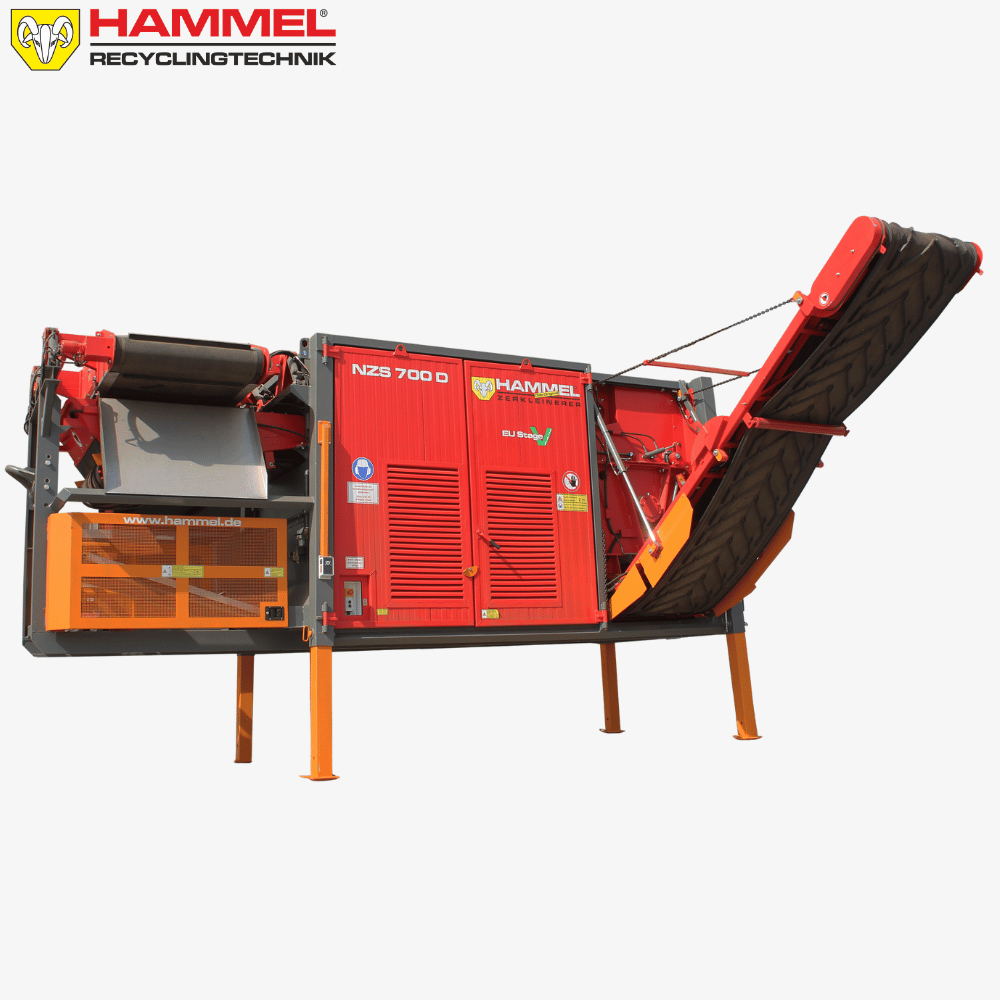

MODEL: NZS 700/1000

VERSIONS: Diesel Tracked (DK) / Diesel (D) / Electric (E)

Advantages

High throughput with consistent output sizing
Energy-efficient operation with low wear costs
Ferrous and non-ferrous metal separation options
Reduced noise emissions for improved site conditions
Modular design for mobile or stationary applications

GET A QUOTE

Description

The HAMMEL NZS range of secondary shredders is engineered for high-performance re-shredding of pre-processed materials, delivering consistent particle size and optimised downstream processing.

Designed to work seamlessly with HAMMEL primary shredders, the NZS 700 and NZS 1000 efficiently process a wide range of materials including waste wood, green waste, root stocks, railway sleepers, and bulky mixed waste.

With a robust rotor design and precision cutting system, the NZS range produces a uniform output material while maintaining low energy consumption and reduced wear. Integrated separation options allow for effective removal of ferrous and non-ferrous contaminants, improving product quality and increasing material value.

Available in both mobile and stationary configurations, the NZS range offers flexible integration into existing recycling systems or complete processing lines.

Key Applications

Waste / Mixed Wood
Green Waste
Root Stocks
Railway Sleepers
Cable Drums

Specifications:

NZS 700 DNZS 700 ENZS 1000 DKNZS 1000 E

DRIVE
DRIVE	350 hp
ROTOR DIAMETER	Ø700 mm
ROTOR WIDTH	1500 mm
WEIGHT	17 T

DRIVE
DRIVE	250 kW
ROTOR DIAMETER	Ø700 mm
ROTOR WIDTH	1500 mm
WEIGHT	17 T

DRIVE
DRIVE	525 hp
ROTOR DIAMETER	Ø1000 mm
ROTOR WIDTH	1500 mm
WEIGHT	30 T

DRIVE
DRIVE	350 kW
ROTOR DIAMETER	Ø1000 mm
ROTOR WIDTH	1500 mm
WEIGHT	22 T
