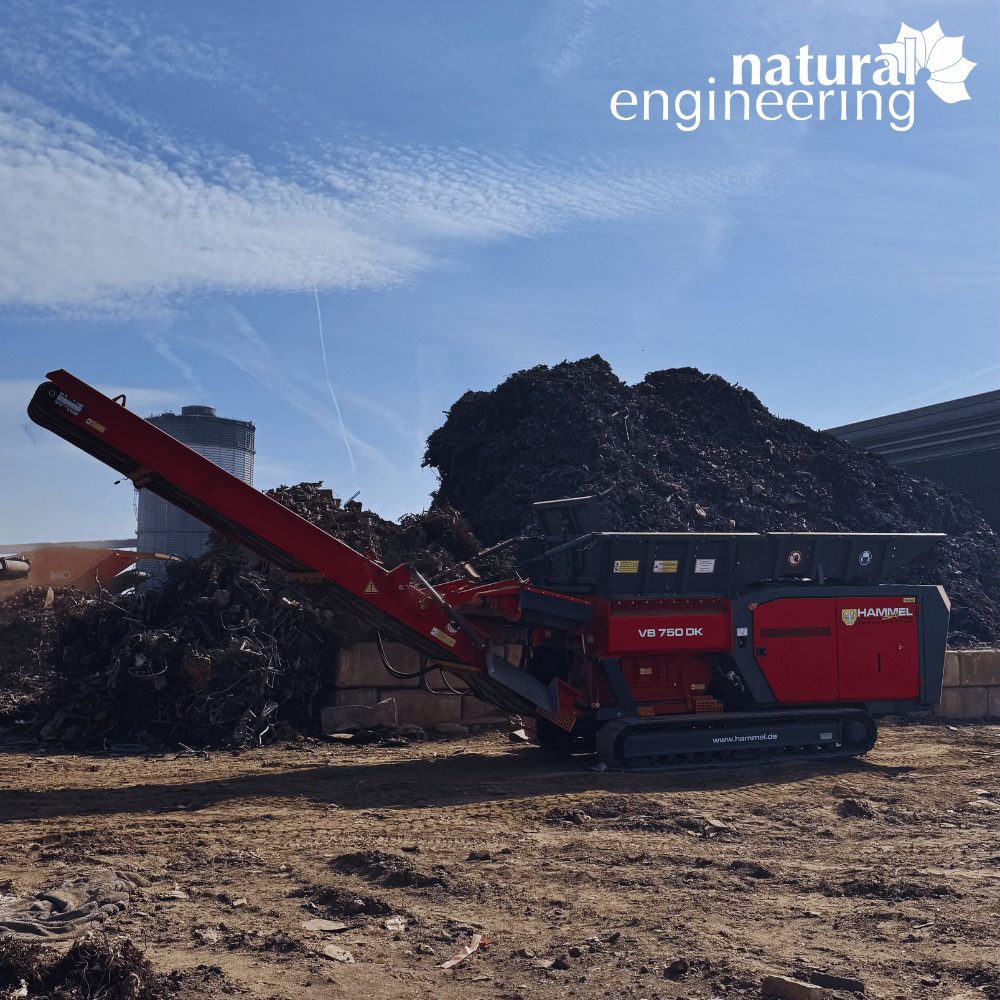

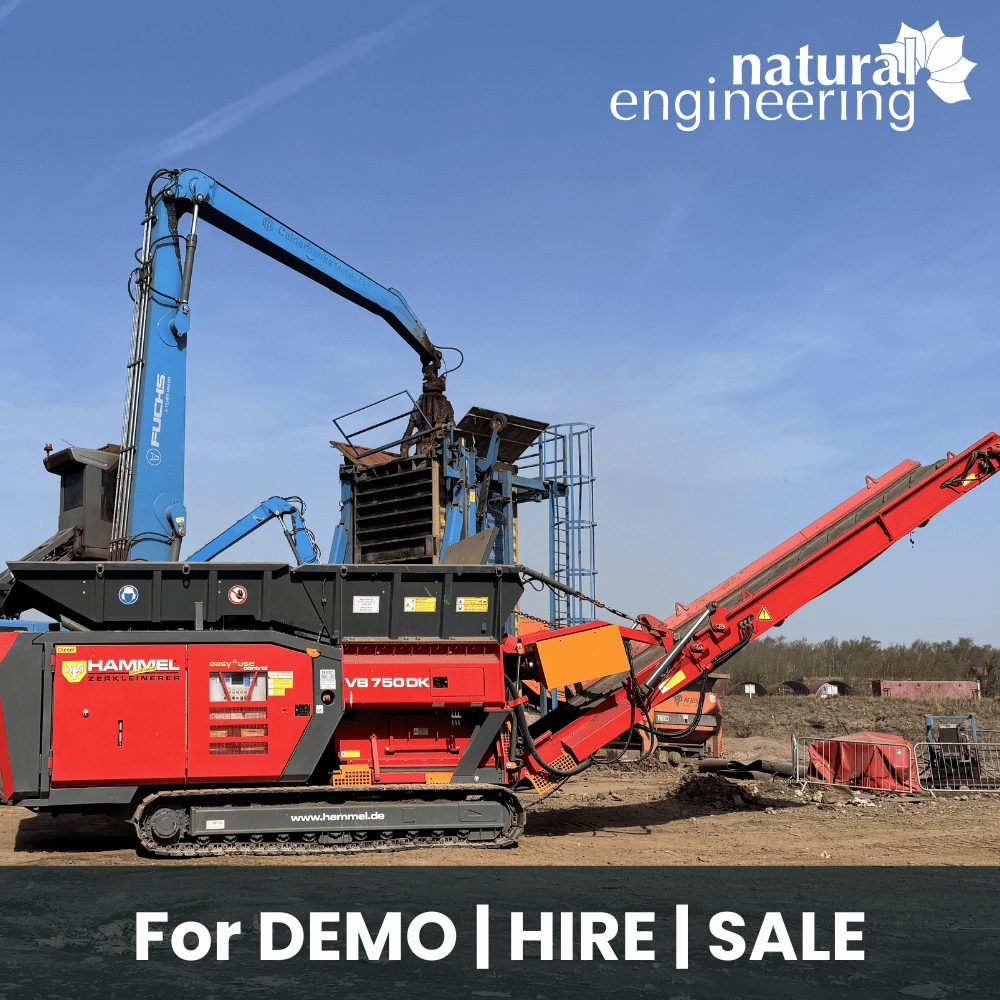

HAMMEL VB750 Shredder
The HAMMEL VB750 is a versatile, mid-range primary shredder designed for efficient processing of a wide range of waste streams. Built with HAMMEL’s proven twin-shaft technology, the VB750 delivers high throughput, aggressive material intake, and consistent output across demanding applications.
Available in diesel (DK / D) and electric (E) variants, the VB750 offers flexibility to suit both mobile and stationary operations, making it a popular choice for waste operators, skip companies, and recycling facilities.
Key Applications
The VB750 is engineered to handle a broad spectrum of materials, including:
- Mixed waste (C&I, C&D)
- Wood waste (including pallets, green waste, and rootstocks)
- Scrap metal
- Aluminium and white goods
- Tyres
- Bulky waste and industrial waste streams
Specifications:
VB 750 DK
| DRIVE | |
| ENGINE | 381 PS (280 kW) CAT C9.3 Stage 5 |
| MAX TORQUE | 240000 Nm |
| ENGINE SPEED | 1,900 RPM |
| FUEL CAPACITY | 470 L |
| DISCHARGE BELT | |
| HEIGHT | 4600 mm / BEI 33° |
| WIDTH | 1400 mm |
| SHAFTS | |
| WORKING LENGTH | 1500 mm |
| TOTAL LENGTH | 1850 mm |
| DIAMETER | 650 mm |
| ROTATION | 7 – 24 (min-1) |
| WEAR PLATES | 2 (both sides) |
| HOPPER | |
| VOLUME | 7 m³ |
| MAIN / TILTING | Surface for long materials |
| DIMENSIONS | |
| WORKING | LxBxH: 12 x 2,5 x 4,7 |
| TRANSPORT | LxBxH: 9,0 x 2,5 x 3,0 |
| WEIGHT | 21 TONS + 2 TON (magnet) |
