Description

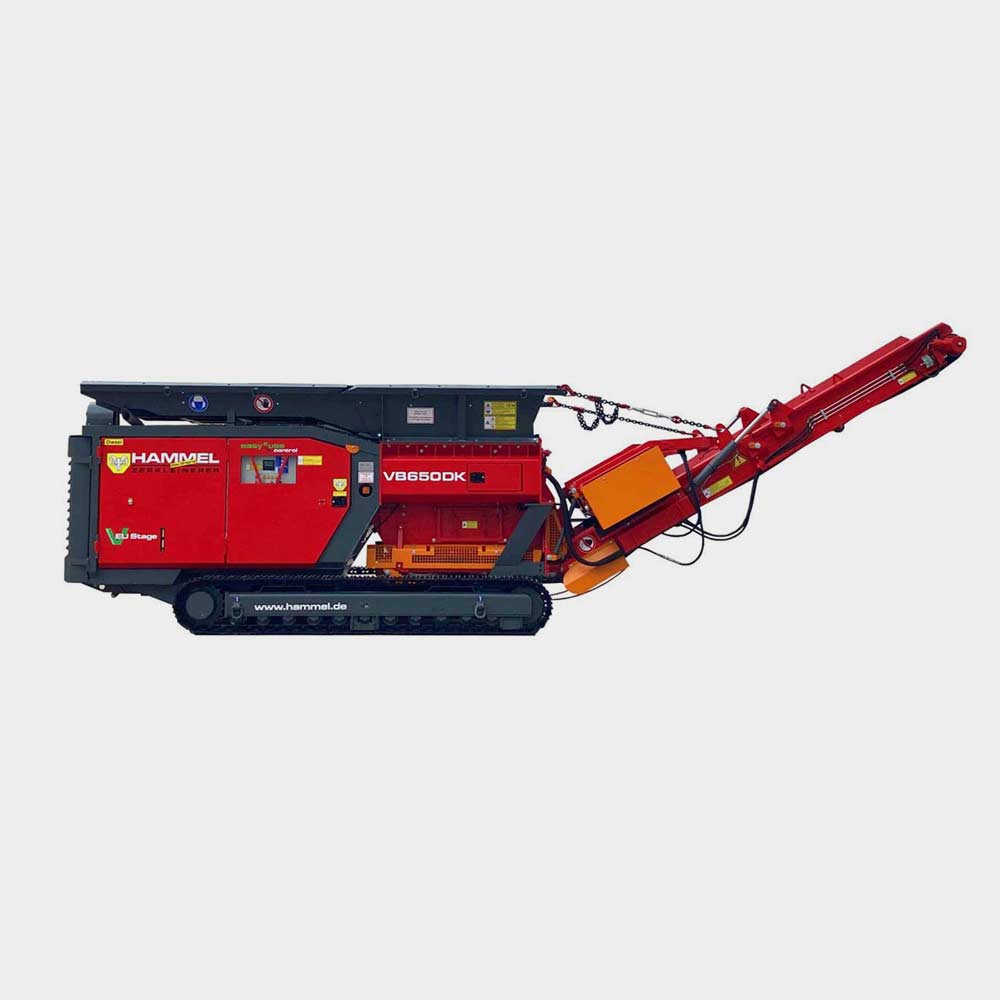

The HAMMEL VB650 is a compact, versatile primary shredder designed for operators who need reliable performance in a smaller footprint.
Built using HAMMEL’s proven dual-shaft shredding technology, the VB650 delivers efficient material reduction while maintaining low operating costs and straightforward operation.

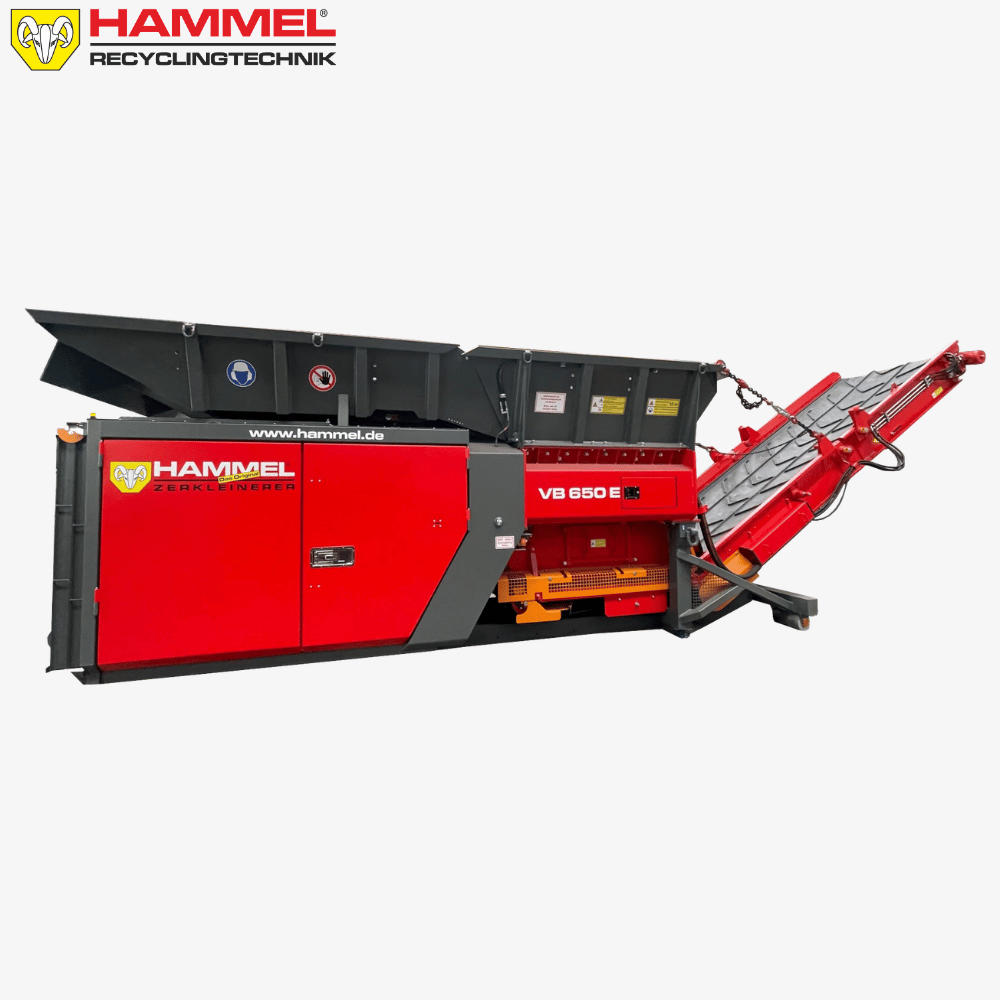

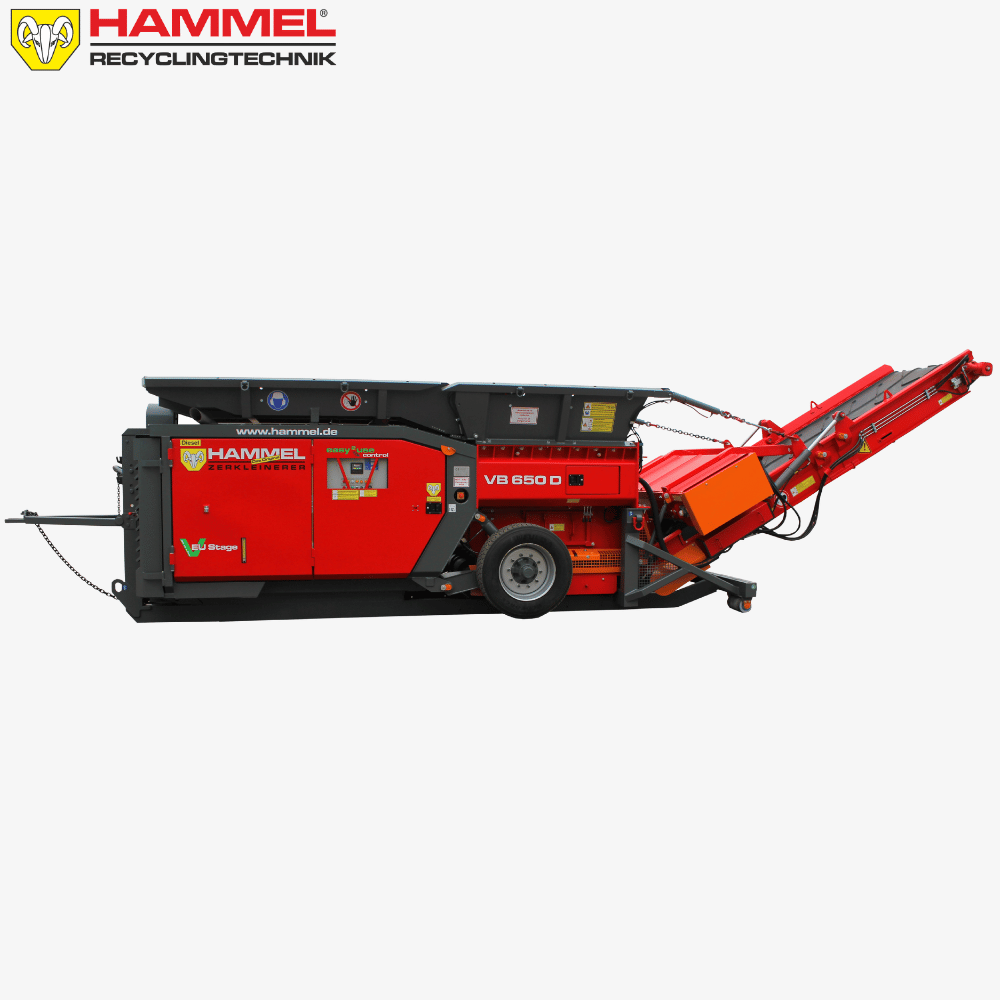

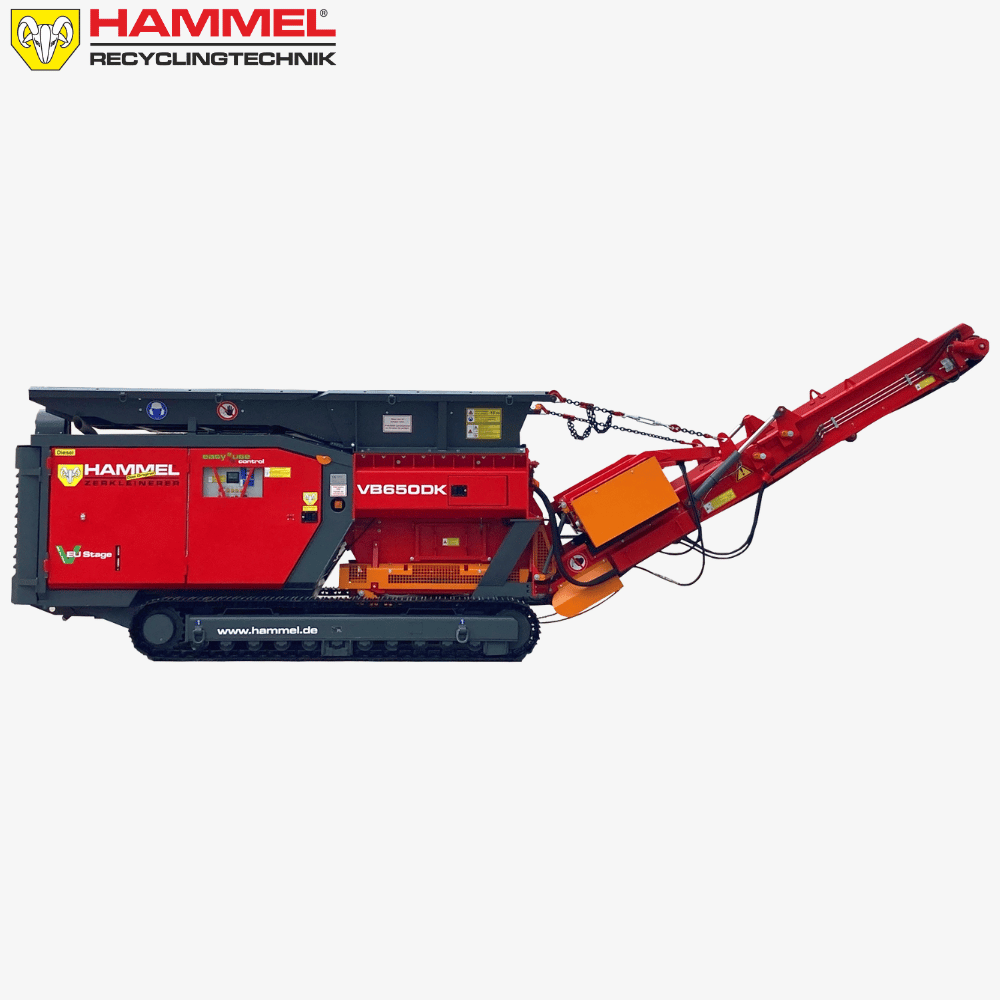

Available in diesel (DK/D) and electric (E) configurations, the VB650 is ideal for entry-level operations, smaller sites, and businesses looking to bring shredding in-house without the scale of larger machines.
Key Applications
- Waste wood (including pallets, offcuts, and light processed wood)
- Green waste and bulky waste
- Commercial & industrial waste (C&I)
- Light scrap metal and mixed recyclable materials
- Furniture, shopfitting waste, and general bulky items
Specifications:
VB 650 DKVB 650 DVB 650 ETHROUGHPUT
| DRIVE | |
| ENGINE | 280 PS (209 kW) Cummins B6.7 Stage 5 |
| MAX TORQUE | 160000 Nm |
| ENGINE SPEED | 1900 RPM |
| FUEL CAPACITY | 420 L |
| DISCHARGE BELT | |
| HEIGHT | 3300 mm / BEI 33° |
| WIDTH | 1400 mm |
| SHAFTS | |
| WORKING LENGTH | 1497 mm |
| TOTAL LENGTH | 1874 mm |
| DIAMETER | 650 mm |
| ROTATION | 13 – 33 (min-1) |
| HOPPER | |
| VOLUME | 5 m³ |
| MAIN / TILTING | Surface for long materials |
| DIMENSIONS | |
| WORKING | LxBxH: 9,4 x 2,5 x 4,7 |
| TRANSPORT | LxBxH: 7,7 x 2,5 x 2,7 |
| WEIGHT | 19 TONS + 2 TON (magnet) |
| DRIVE | |
| ENGINE | 280 PS (209 kW) Cummins B 6.7 Stage 5 |
| MAX TORQUE | 160000 Nm |
| ENGINE SPEED | 2200 RPM |
| FUEL CAPACITY | 480 L |
| DISCHARGE BELT | |
| HEIGHT | 3200 mm / BEI 33° |
| WIDTH | 1400 mm |
| SHAFTS | |
| WORKING LENGTH | 1497 mm |
| TOTAL LENGTH | 1874 mm |
| DIAMETER | 650 mm |
| ROTATION | 13 – 33 (min-1) |
| HOPPER | |
| VOLUME | 5 m³ |
| MAIN / TILTING | Surface for long materials |
| DIMENSIONS | |
| WORKING | LxBxH: 9,7 x 2,4 x 4,4 |
| TRANSPORT | LxBxH: 8,0 x 2,4 x 2,6 |
| WEIGHT | 18 TONS + 2 TON (magnet) |
| DRIVE | |
| ENGINE | 2 x 90 kW |
| MAX TORQUE | 160000 Nm |
| ENGINE SPEED | 3000 RPM |
| FUEL CAPACITY | N/A |
| DISCHARGE BELT | |
| HEIGHT | 3200 mm / BEI 33° |
| WIDTH | 1400 mm |
| SHAFTS | |
| WORKING LENGTH | 1497 mm |
| TOTAL LENGTH | 1874 mm |
| DIAMETER | 650 mm |
| ROTATION | 15 – 37 (min-1) |
| HOPPER | |
| VOLUME | 5 m³ |
| MAIN / TILTING | Surface for long materials |
| DIMENSIONS | |
| WORKING | LxBxH: 9,6 x 2,5 x 4,5 |
| TRANSPORT | LxBxH: 8,0 x 2,5 x 2,7 |
| WEIGHT | 16 TONS + 2 TON (magnet) |
| MATERIAL | TONNES PER HOUR |
| WASTE WOOD | 30 |
| PALLETS | 25 |
| CABLE DRUMS | 20 |
| RAILWAY SLEEPERS | 15 |
| ROOT STEMS | 20 |
| GREEN WASTE | 15 |
